The great journey of a fruit: from the blooming orchard to a glass, yogurt and craft cider

Encyclopedia of the Concentrated Juice and Fruit Raw Material Industry: 160 Terms, Five Sectors, One Living Story

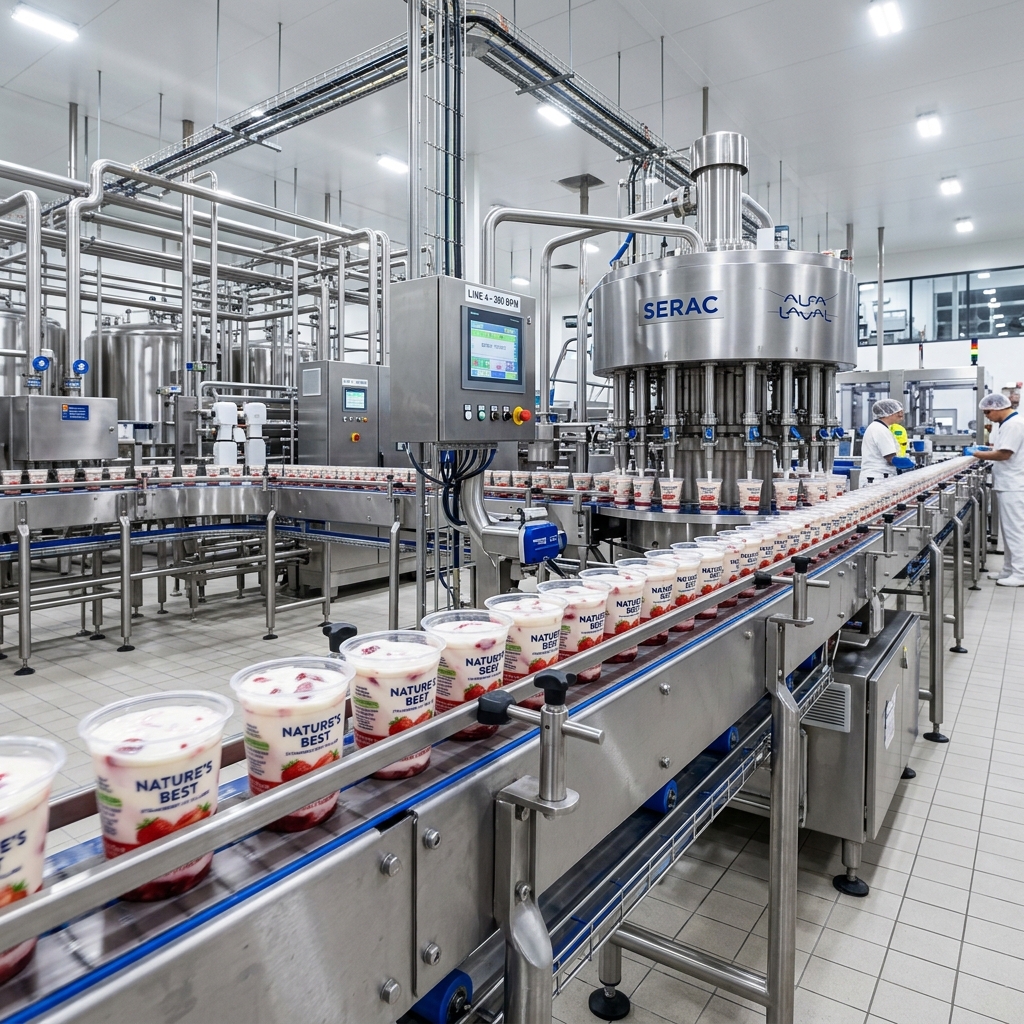

Every time you open a juice carton, take a cup of fruit yogurt out of the fridge, buy a box of candies with jelly filling, or order a glass of sparkling cider at a bar — you are holding in your hands the finale of an amazing journey thousands of kilometers long.

A fruit on the branch is a masterpiece of nature. But 90% of it is plain water. How do you deliver its value across the ocean without losing a drop of taste, aroma, or benefit? This is not a question of cooking — it is a question of global logistics, international trade, physics, chemistry, and microbiology. And it has a beautiful, high-tech engineering answer.

We will follow the entire journey of the fruit from the tree to the human body — studying procurement economics, laboratory setups, and the specifics of five consumer industries. This is the complete map of the fruit raw material industry.

Industry Map: The Fruit's End-to-End Route

Chapter 1. What Is Concentrated Juice and Why It Conquered the World

Before we set off, let's define our main character.

1. Concentrated juice — is a natural fruit juice from which part of the natural moisture is technologically removed. As a result, the volume shrinks by an average of 5–7 times, while all sugars, acids, minerals, aromatic compounds, and the original nutritional value are preserved. It is not an artificial product and not a substitute. It is a way to pack the essence of thousands of tons of fruit into a compact form. At the destination, the concentrate will be reconstituted with water to the original parameters — and it becomes juice again.

Concentrated juices and purées are the main "currency" of the global B2B fruit raw material market. This technology conquered the planet thanks to hard-nosed economics built on several key factors.

2. Logistics leg — the distance between plantations (for example, citrus groves in Brazil or apple orchards in China) and bottling plants in Europe can be tens of thousands of kilometers. Shipping ordinary juice means paying astronomical sums to transport natural water.

3. Cost of shipping per ton of dry solids — concentration allows freight costs to be reduced severalfold. Instead of six containers of water — one container of pure fruit value.

4. Concentration ratio — a physical indicator showing how many times the volume of the original juice decreased during evaporation (typically from 5:1 to 7:1).

5. Concentrate yield — the percentage ratio of the mass of the resulting finished concentrate to the mass of the original raw material. This indicator directly determines the profitability of the processing plant.

6. Containerization — standardization of logistics processes that allows fruit raw material to be transported in standardized 20- and 40-foot ocean containers without intermediate cargo transshipment.

Chapter 2. Market Players: Who's Who

The global fruit raw material supply chain is not just factories and warehouses. It is a whole world of people with different roles and interests. Without understanding this structure, a procurement specialist will forever be confused about whom to approach and what to expect.

7. Grower — an agricultural producer or large agriholding that grows fruit and berry crops and does the initial sorting of raw material. This is the very beginning of the entire chain.

8. Processor — a production facility that receives fresh fruit, washes it, crushes it, and mechanically extracts the liquid phase using presses. It stands right at the edge of the orchard, because every hour of downtime kills quality.

9. Concentrator — a high-tech plant specializing in evaporation, filtration, and aseptic packaging of raw material for long-distance export. Often the same facility as the processor.

10. Trader — a major international commercial player that buys huge volumes of concentrates from plants around the world, builds exchange batches, and resells them. Works with Brazil, China, Argentina, and Poland simultaneously.

11. Broker — an independent intermediary between the seller (the plant) and the buyer (the importer), working on commission and helping the parties find the optimal pricing terms. Lives on connections and market knowledge.

12. Importer — a company engaged in foreign economic activity: sourcing raw material abroad, arranging international logistics, customs clearance, and currency payments. Takes on all the risks of crossing the border.

13. Distributor — a local supplier that buys raw material from the importer, owns warehouse capacity, and distributes products in small and medium batches among end-user food producers.

14. Contract manufacturer — a plant that does not own trademarks itself but provides services for bottling juices, nectars, or making dairy products from the customer's raw material. Produces but does not sell.

15. Brand owner — a company that develops the recipe, product concept, and marketing strategy. May not have its own plant but owns the name on the packaging.

16. Private Label (STM) — a line of juice or dairy products produced by a food plant specifically on the order of a retail chain under its own brand. Store juices "from the retail chain" — that's it.

Chapter 3. Types of Raw Material: What Is Available on the Market

Before studying the technologies, it is important to understand the form in which fruit is delivered to plants.

17. Not-from-concentrate juices (NFC — Not From Concentrate) — produced by mechanical pressing from fresh fruit without removing moisture. The only processing is gentle pasteurization and aseptic bottling. Premium segment: the most natural product, but expensive in logistics — you pay for transporting natural water.

18. Reconstituted juices (FC — From Concentrate) — produced from concentrate by adding an equivalent volume of prepared drinking water with the return of volatile aromatic fractions. The basis of the mass market: stable quality, long shelf life, low shipping cost.

19. Fruit purée — a natural product obtained by grinding and straining ripe fruit through sieves with removal of pits, but with full preservation of native plant fiber. The basis for nectars and baby food.

20. Concentrated purée — fruit purée from which part of the natural moisture is removed by gentle heat treatment. High viscosity, economical to transport, used as an industrial semi-finished product.

NFC vs FC Comparison Table

Chapter 4. Garden and Press: Mechanical Extraction of Flavor

Morning. A plantation somewhere in Poland, Iran, Brazil, or China. Ripe fruits fall into the hoppers of harvesters and race to the processing complex located right at the edge of the orchards — to avoid spontaneous fermentation. Every hour of delay kills quality.

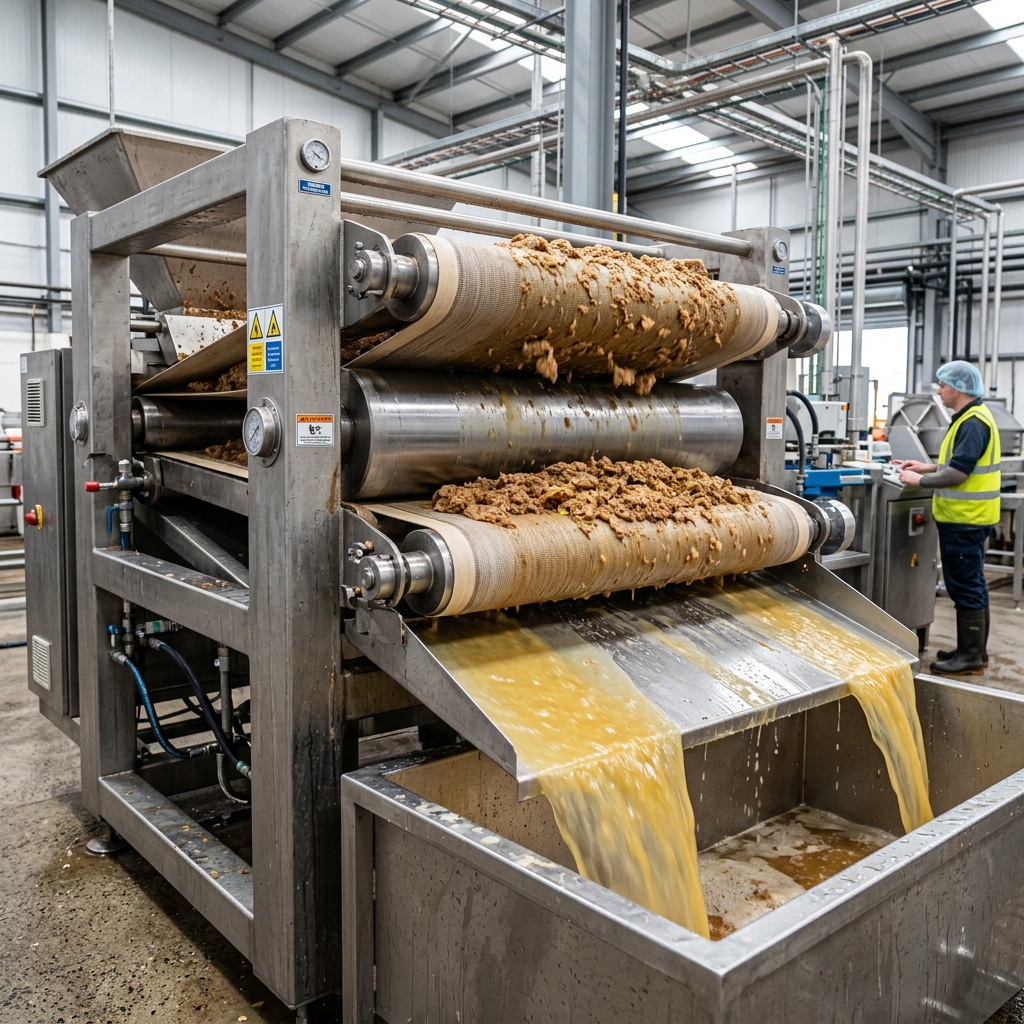

From under the crusher comes 21. pomace — a homogeneous crushed fruit mass. It is from it that presses will extract the liquid phase.

But some fruits simply cannot be pressed. Take blackcurrant: it has a dense skin rich in coloring pigments — pressing is useless, the juice and color will not come out. Therefore, the pomace is kept at a controlled temperature. This is 22. maceration: a process that destroys the cell walls of the skin from within, dramatically increasing both the juice yield and the extraction of anthocyanins.

And so the juice begins to flow. But it immediately falls into an ambush.

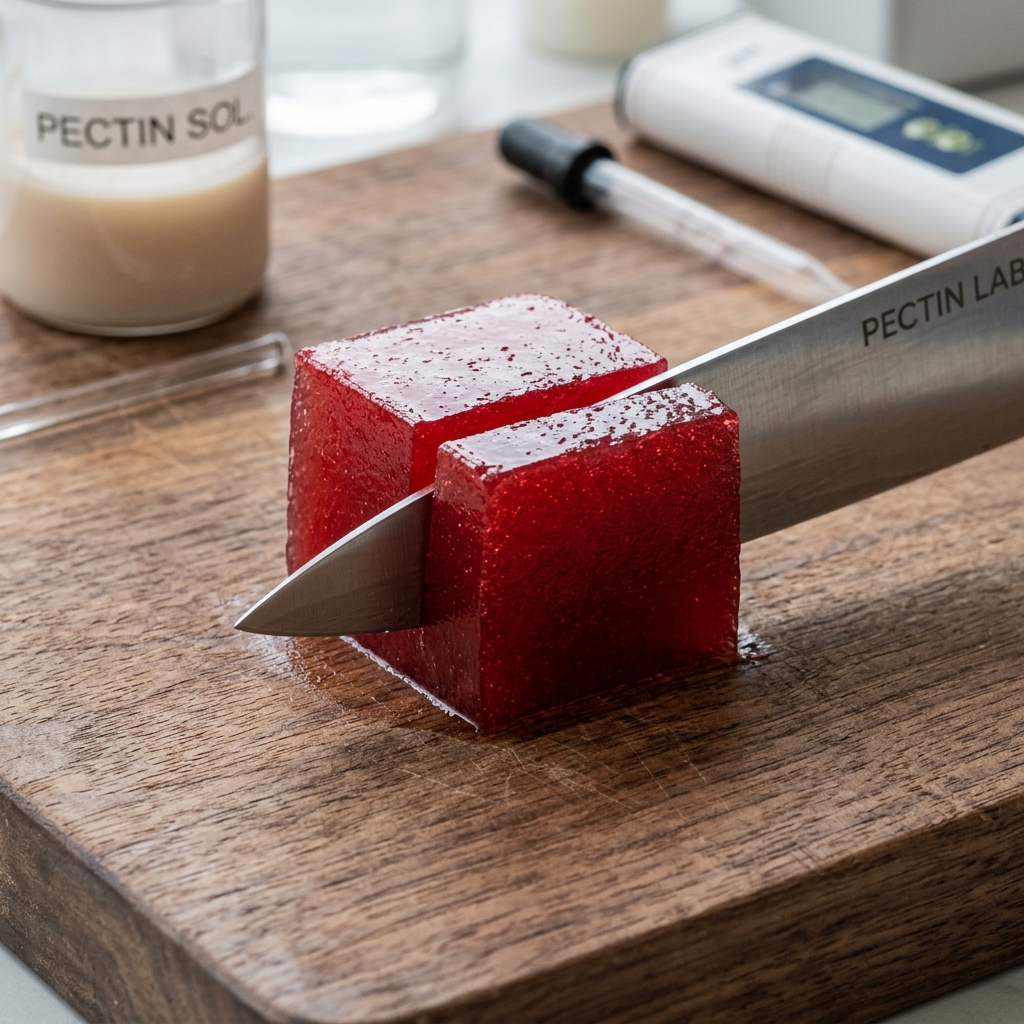

Inside every fruit live 23. pectins — complex plant polysaccharides, a kind of "vegetable glue" that holds the flesh in a dense structure. In juice, pectin behaves like an unwanted guest: it creates a viscous colloidal system, impedes filtration, and causes turbidity. For brewers and producers of clear juices — an enemy. For confectioners and dairymen — a best friend, because it holds the structure of yogurt and fillings.

To break the pectin defense, 24. pectinase is added to the juice — a natural enzyme preparation that cuts long pectin molecules like scissors cut a thread. This process is called enzymatic hydrolysis: biopolymers are broken down into short fragments, viscosity drops, and filters breathe a sigh of relief.

If not fully ripe apples are processed, the juice may contain a lot of starch. Then 25. amylase comes into play — an enzyme preparation that breaks starch down into simple sugars and prevents starchy haze in the concentrate during storage.

From the marc — the pomace — more value can still be extracted. 26. extraction comes into play: the marc is washed with warm water added in portions, which "pulls out" the remaining sugars, acids, and aromas. Nothing goes to waste.

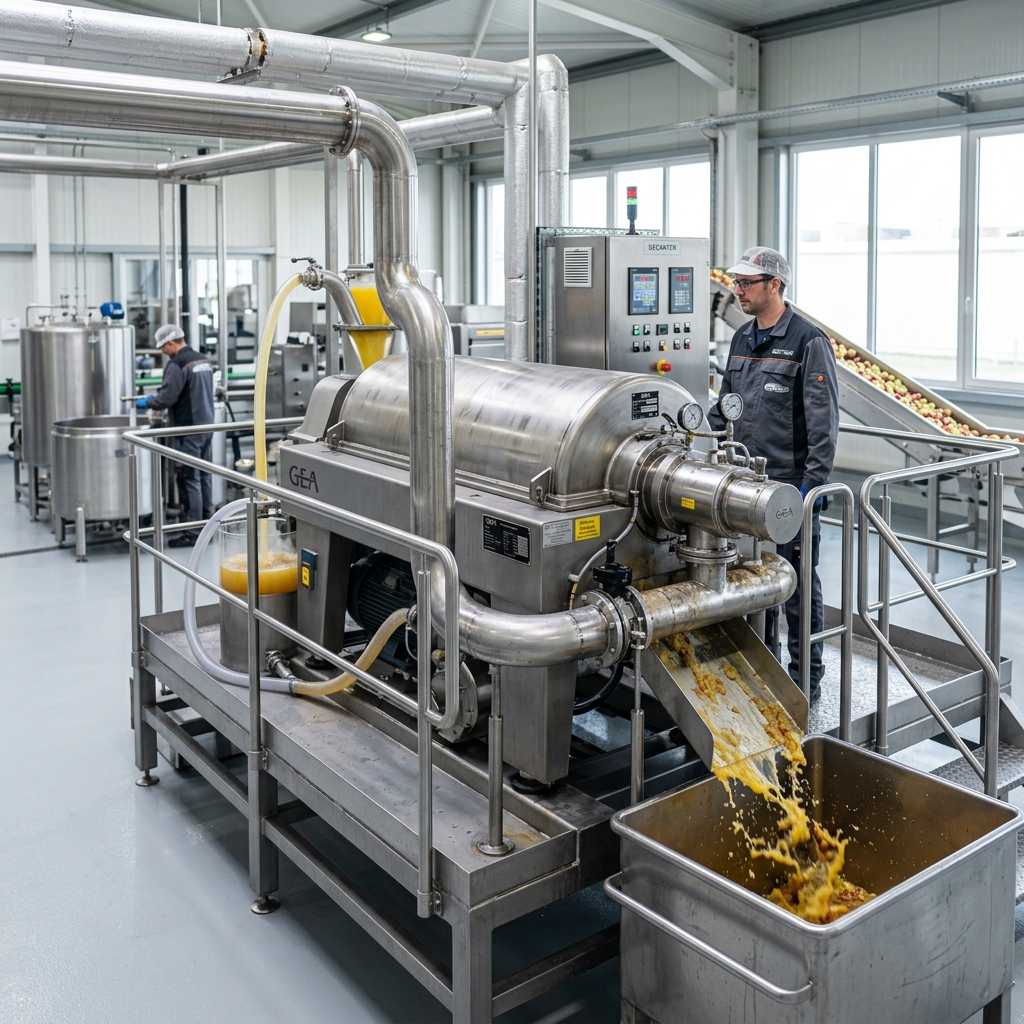

For fibrous raw materials — mango, tropical fruits — 27. decanters are increasingly used instead of traditional presses: horizontal continuous-action centrifuges. Centrifugal force separates the pomace into a liquid phase (juice) and wet marc. It works faster than a press and produces a cleaner product.

After the decanter or press, the juice is additionally clarified on a 28. centrifugal separator — a high-speed drum apparatus of the disc type that removes fine suspended sediment from the flow. The process is called 29. separation.

Chapter 5. The First Battle — Against Oxygen

The juice came out from under the press warm, alive, and mortally vulnerable. Its main enemy is already here — invisible and merciless. It is oxygen.

Have you seen how quickly a bitten apple darkens? That is 30. oxidation — a chain chemical reaction of the juice's organic components with oxygen. The color changes, vitamin C dies, the aroma evaporates. The catalyst is 31. polyphenol oxidase — a natural enzyme that is instantly activated in the presence of air. Miss the moment — and the batch is spoiled.

The weapon against oxygen is 32. deaeration (degassing): the juice is finely sprayed inside a sealed vacuum column that sucks out all dissolved gases. No more oxygen — oxidation is stopped.

Sometimes the raw material needs to be temporarily "preserved" right at the production site. Then 33. sulfitation is used: a strictly dosed amount of sulfur dioxide (SO₂) or its salts is introduced — it blocks fermentation, suppresses wild yeast, and prevents enzymatic browning. Later, the SO₂ will be removed by heating.

Another technique is 34. flotation: microbubbles of inert gas (nitrogen) are passed through the volume of liquid. The bubbles capture suspended particles and lift them to the surface as a dense foam, while simultaneously displacing dissolved oxygen. One action — both cleaning and protection.

Chapter 6. The Fork: What Should the Juice Be Like?

After the press and protection from oxygen, the juice stands at a fork in the road. The technologist decides the main question: what should this product be like?

Branch A. Velvety and Thick — for Nectars and Yogurts

In a nectar or drinking yogurt, you want to feel the pulp. That very "body" of the drink is 35. pulp: a suspended solid phase of microparticles of juicy flesh, fibers, and cell walls. Its amount is strictly regulated.

The problem: the pulp settles to the bottom — physics. To prevent this, the product is 36. homogenized: forced under pressure of up to 20–25 MPa through microscopic openings. Pulp particles are broken down to micron level and distributed evenly throughout the entire volume — forever.

Branch B. Crystal Clear and Transparent — for Juices and Beer

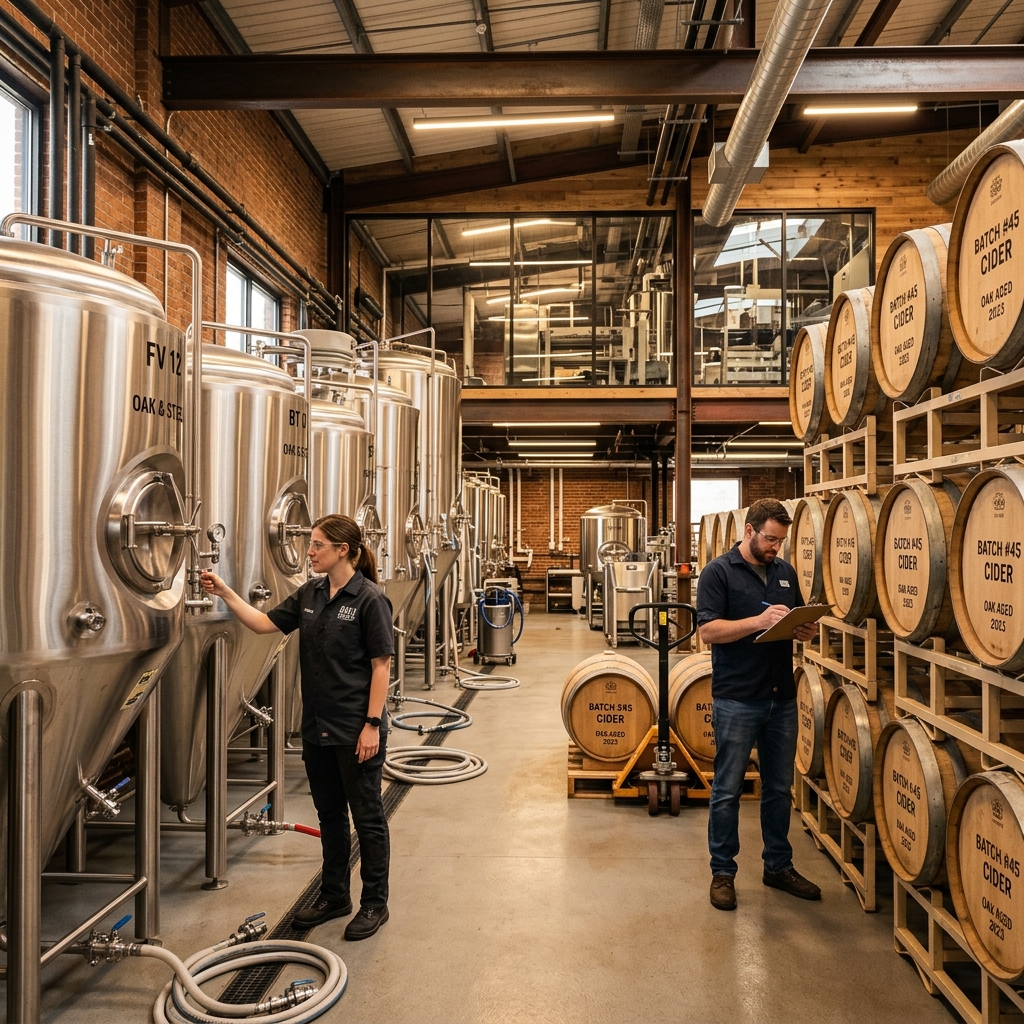

The producer of light apple juice or craft cider wants something else: the liquid must shine like glass. Not a single suspended particle. This is 37. clarification (fining) — a set of measures to break down the stable colloidal system of cloudy juice.

The first technique is heat. When heated, proteins in the juice coagulate into large flakes — this is 38. coagulation. The protein transitions from an invisible dissolved state into a sediment that is easy to filter.

The second technique is natural clay. 39. Bentonite treatment (fining): a bentonite suspension acts like a magnet, attracting positively charged protein molecules and pulling them to the bottom.

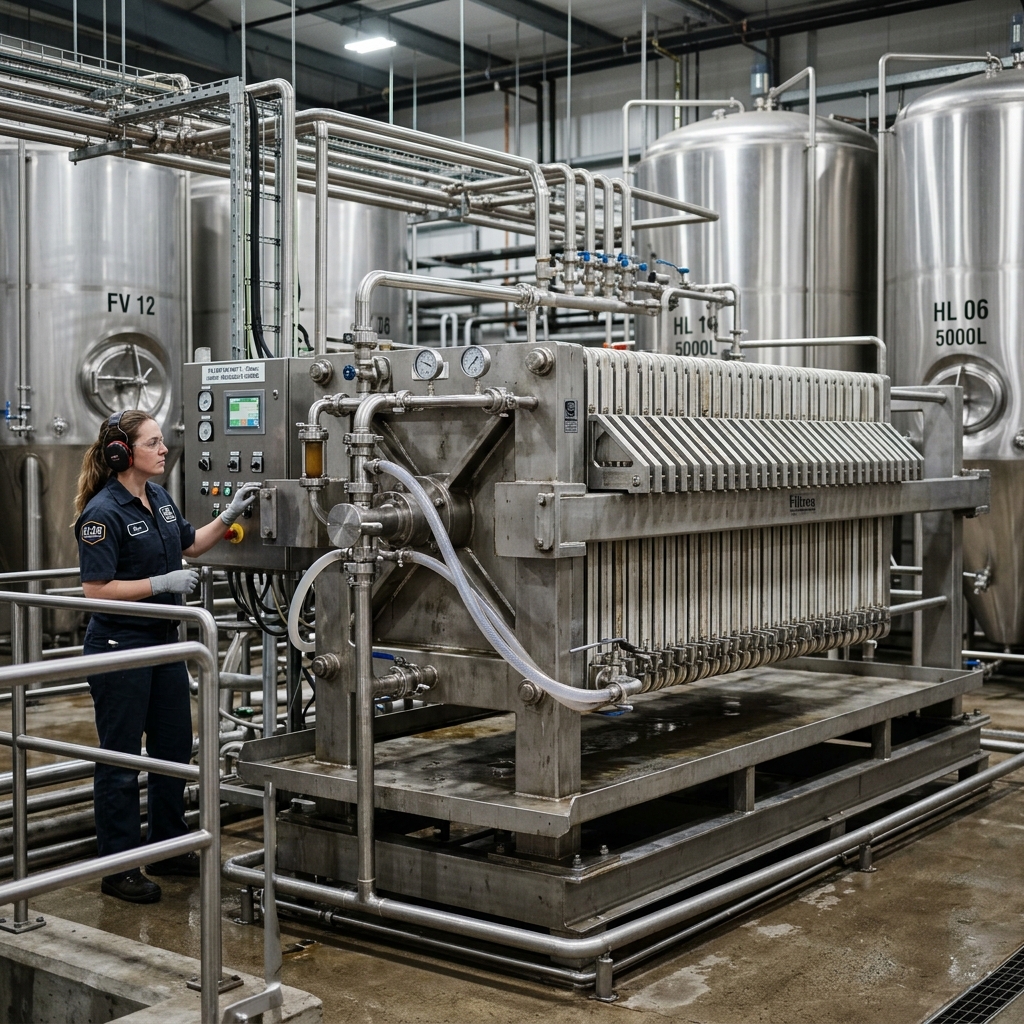

After clarification — 40. filtration: mechanical separation through porous barriers. One of the classic methods is the pre-coat of 41. diatomite (kieselguhr) onto the screens of plate-and-frame filters. Powder from sedimentary rocks creates a porous layer that traps coarse particles.

A real breakthrough is 42. membrane filtration: separation of liquid mixtures through polymer or ceramic membranes under pressure, without heating and without chemicals.

Several levels of subtlety. 43. Microfiltration (pores 0,1–10 µm) retains coarse suspended solids, yeast cells, and bacteria — this is cold sterilization. 44. Ultrafiltration (pores 0,01–0,1 µm) retains pectins, proteins, and large macromolecules, letting only water, sugars, and acids through. This is critically important for brewers: an ultrafiltered concentrate will not produce sediment in the wort.

The next level is 45. nanofiltration: between ultrafiltration and reverse osmosis. It retains organic molecules with a molecular weight above 200 Da and divalent salt ions. Used for fine purification and partial demineralization.

The most radical technology is 46. reverse osmosis: through membranes under pressure significantly exceeding the natural osmotic pressure of the solution, only water passes. The juice is concentrated with no heating at all.

Clarity is measured objectively — by the 47. turbidity index in NTU units (nephelometric turbidity units). The lower the number, the cleaner the product.

For continuous removal of heavy fractions in the flow, a 48. centrifugal separator is used — a high-speed drum apparatus of the disc type.

Chapter 7. Fire: Thermal Deactivation of Microflora

The clarified juice is beautiful and transparent. But it contains bacteria, yeast, and molds. Leaving them means losing everything in a few days. They all must be killed. And this must be done without killing the flavor and vitamins along the way.

The critical factor here is 49. thermolability: vitamins and antioxidants are sensitive to heat and are destroyed by excessive temperatures or prolonged processing. The rate of bacterial death grows exponentially with temperature — a short burst of heat is more effective than a long boil.

The technologist's arsenal:

50. Pasteurization — heat treatment below 100°C. Destroys vegetative forms of pathogenic microflora, molds, and yeast.

51. Flash pasteurization (HTST — High Temperature Short Time) — heating in the flow: 90–95°C for 15–30 seconds. Instantly inactivates native browning enzymes.

52. Ultra-pasteurization (UHT — Ultra High Temperature) — 120–135°C for 2–4 seconds followed by rapid cooling. Destroys the most resistant thermophilic bacterial spores. After such treatment, the juice lives at room temperature for more than a year.

53. Tunnel pasteurization — processing a beverage already sealed in bottles or cans in a multi-section tunnel under jets of hot water. Eliminates secondary contamination.

54. Thermal shock — the effect of an extremely sharp temperature swing that instantly destroys the cell membranes of microorganisms.

A dangerous enemy is 55. thermophilic bacteria (predominantly of the genus *Alicyclobacillus acidoterrestris*). Their spores survive standard pasteurization and germinate during storage, causing spoilage with the appearance of a specific "medicinal" off-flavor. The only protection is strict microbiological monitoring and special processing regimes.

A useful engineering secret: 56. heat recovery. The hot pasteurized juice flows toward the cold one through steel plates of a heat exchanger — it gives up heat and cools down itself. The plant saves up to 90% of energy on heating and cooling.

All operations — deaeration, pasteurization, cooling — are combined into a single unit: 57. UPOD (pasteurization-cooling deaeration unit). This is the heart of the workshop: a continuous automated conveyor turning raw juice into a stable and safe product.

*(A small digression. UPOD is an abbreviation with three lives. In law, it means "notice of commencement of business activity"; in road construction, per international standards 33128-2014, it means "restraining pedestrian road barrier". Context decides everything.)*

After operation, the equipment requires complete washing without disassembly — 58. CIP cleaning: an alkaline solution, water, an acid solution, and again water are pumped sequentially through all pipes, pumps, and heat exchangers according to a strict algorithm. Before the next batch, 59. SIP sterilization is performed: the equipment is treated with sharp saturated steam directly in the assembled state.

Chapter 8. Concentration and Physicochemical Markers of the Raw Material

The juice is disinfected. Now the main logistics task must be solved: how to ship it to the other end of the planet cheaply and without losses? The answer — remove the water.

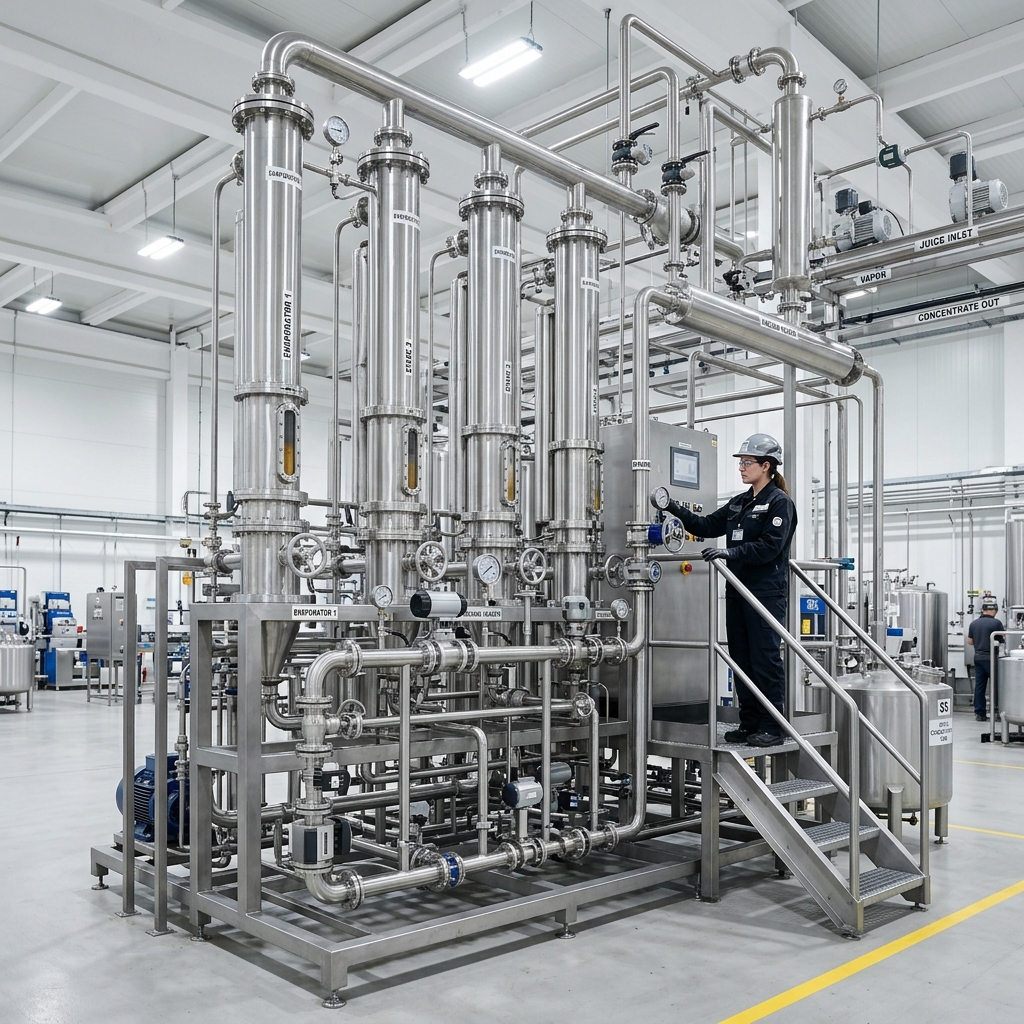

60. Vacuum evaporation: due to deep vacuum, the juice boils at 40–60°C. The water evaporates, and the vitamins and natural flavor do not scorch. At normal atmospheric pressure, water would boil at 100°C — and a real nightmare would begin.

This nightmare is called the 61. Maillard reaction: when overheated, sugars react with amino acids — the concentrate darkens and acquires a burnt off-flavor. The value of the batch drops to zero. Vacuum is not a whim, but a necessity.

Heat and acids do something useful: they split sucrose into glucose and fructose — this is 62. sugar inversion. It increases sweetness and prevents the concentrate from sugaring during storage.

63. Reducing sugars — glucose and fructose — are the most active in the Maillard reaction. Their amount is measured separately to more precisely control heating regimes.

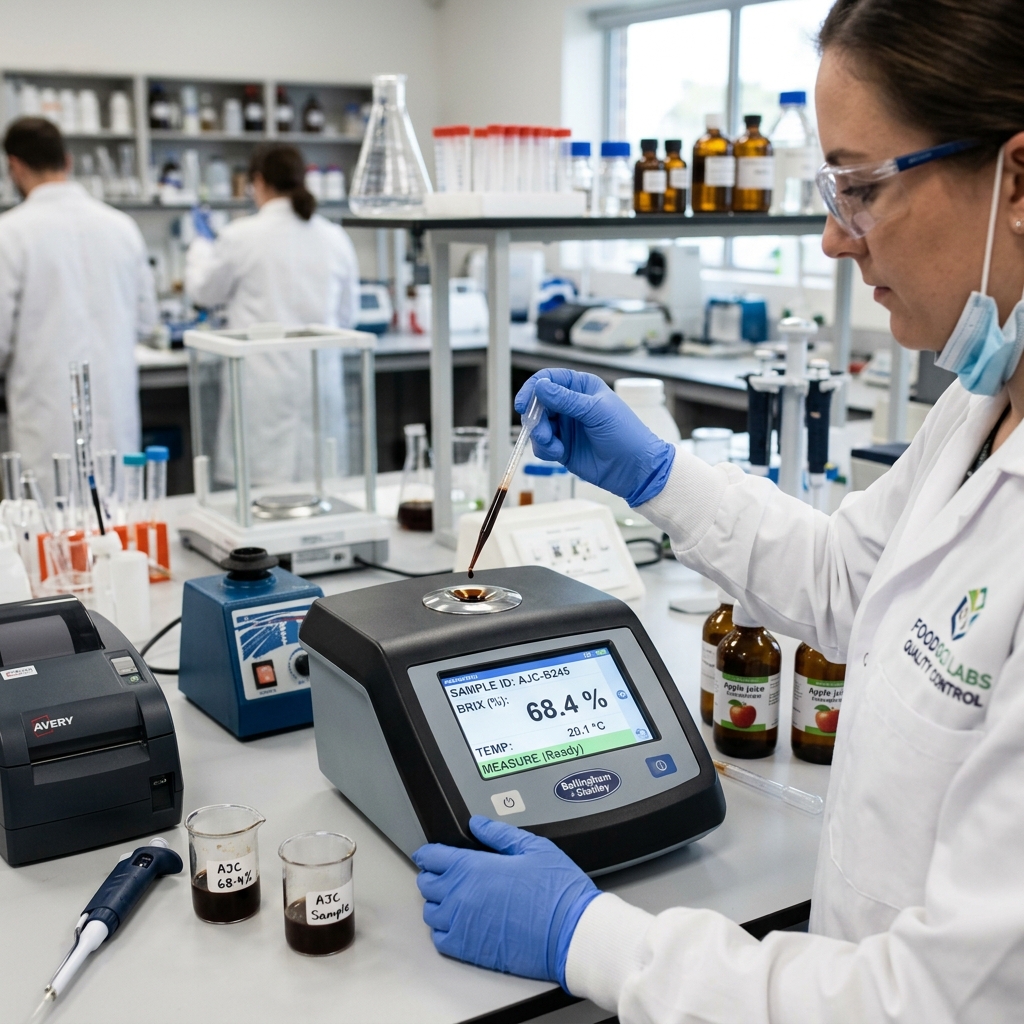

After evaporation, it is time for measurements. The main indicator in B2B trade is 64. Brix (°Bx): 1°Bx strictly equals 1 gram of sucrose per 100 grams of aqueous solution. It is measured with a 65. refractometer — an optical instrument that uses light refraction. The standard for apple concentrate is 70°Bx. If at unloading the refractometer shows 68°Bx — the batch contains more water than agreed, and the price is recalculated.

Sometimes a recalculation is required with a correction for temperature or a targeted adjustment of concentration to the norm — this is 66. Brix correction.

67. Soluble solids (RSV) — a summary indicator of all non-volatile organic and mineral substances of the juice: sugars, acids, pectins, salts. The basis for calculating recipes.

In parallel, the 68. titratable acidity is monitored — the total content of free organic acids (malic, citric, tartaric), determined by titration with alkali to the neutralization point.

The ratio of Brix to acidity is the 69. maturity index of the fruit. It determines the harmony of flavor and serves as one of the markers of raw material authenticity.

Sometimes they go even further — to 70. deionization: the juice is run through a sequential system of cation- and anion-exchange resins, removing color, odor, and acids. The result is colorless neutral fruit sugar — an ideal natural sweetener.

A key indicator for storage without preservatives is 71. water activity: the ratio of the vapor pressure above the product to the pressure above pure water. For a highly concentrated juice, Aw ≈ 0,85 — at such a value, most pathogens do not develop. This is what makes concentrates stable during long-term storage.

Chapter 9. Industrial Aromatics: The Hunt for Scent

During vacuum evaporation, volatile fruit fractions boil off first and fly away with the vapor. If no action is taken — the concentrate will lose most of its aroma. The hunt for scent begins.

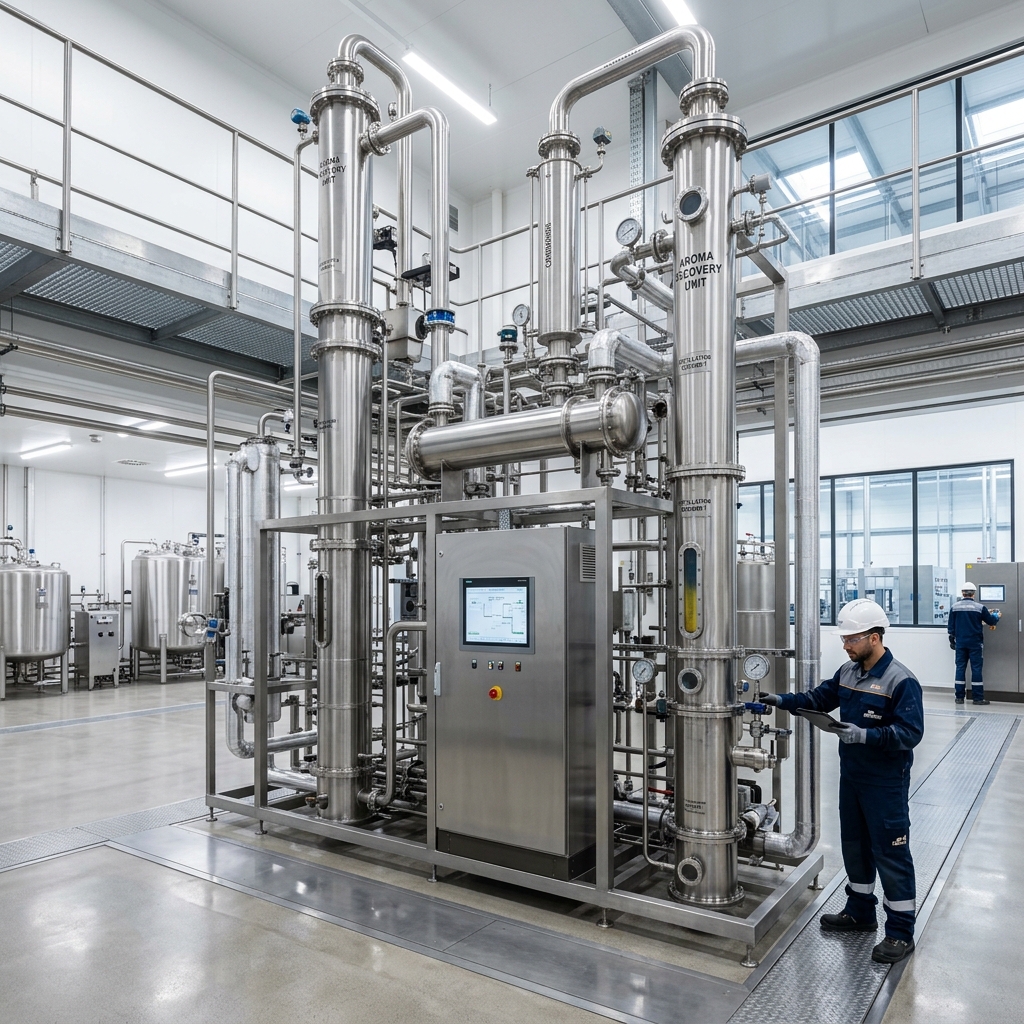

72. Aroma recovery — a high-tech process of condensing volatile organic compounds at the first stage of the vacuum evaporator, before the massive evaporation of water begins. The captured aroma is preserved and later returned to the juice during reconstitution.

Sometimes a different approach is used — 73. Aroma stripping: volatile fragrant substances are desorbed from the juice with sharp steam in a special column before feeding it to the evaporator.

The result of capture is a 74. Fruit essence: a concentrated water-alcohol solution of the fruit's volatile aromatic components, obtained by fractional distillation of juice vapors. During reconstitution it is returned to the reconstituted juice.

Citrus fruits are a separate story. An additional 75. Fruit essential oil is extracted from them: an oily, water-insoluble fraction of aromatic substances, separated by centrifugation. It is this oil that gives that very lively citrus aroma.

Inside the essential oil there is a 76. terpene fraction: a group of hydrocarbons (terpenes). Control of terpenes is important: their excess gives the drink a sharp resinous note.

For maximum precision, the captured vapor is divided into fractions — 77. aroma fractionation: isolating the purest notes and removing undesirable "cooked" tones.

Chapter 10. Spacesuit for the journey: aseptic packaging

The concentrate is ready. It needs to be packaged so that it survives months of storage and thousands of kilometers of travel — without a single preservative.

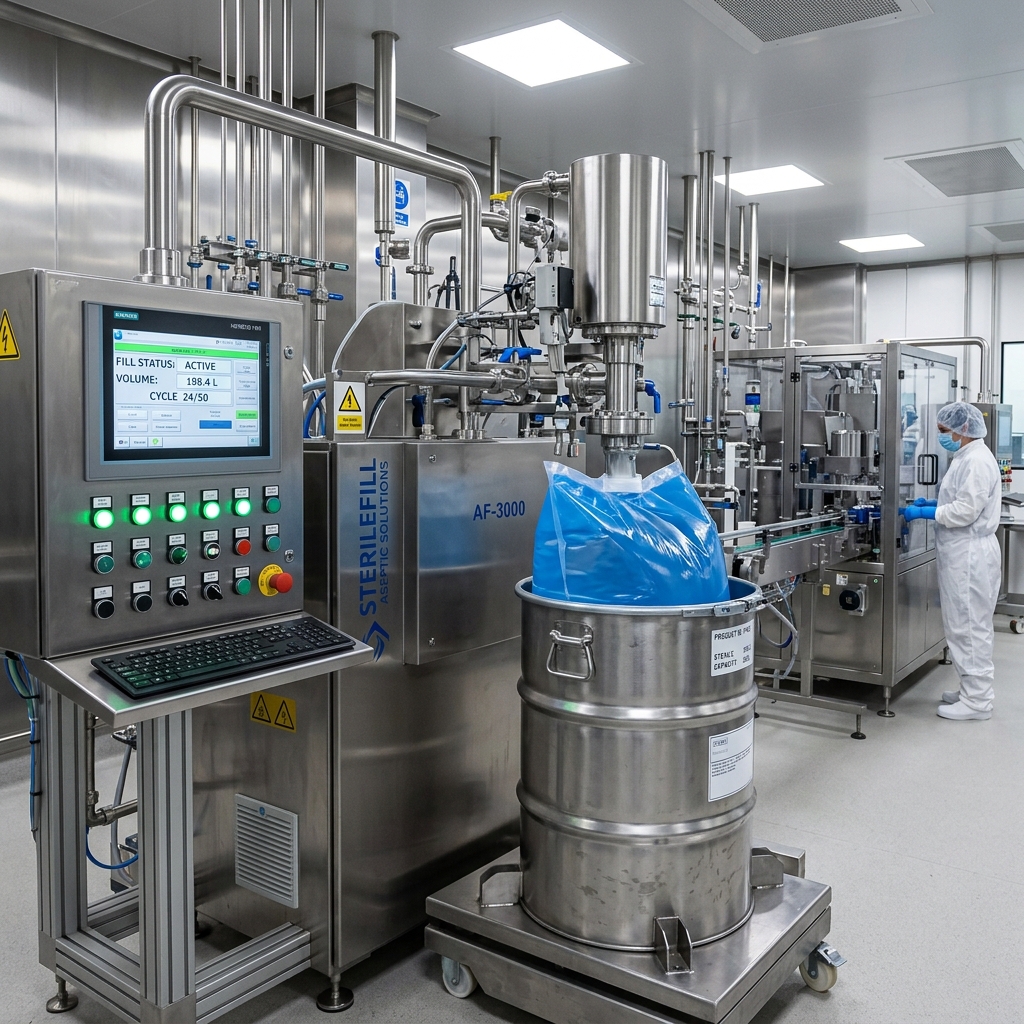

The solution is 78. aseptic processing: a scientifically grounded system that rules out repeated microbial contamination. The sterile product is packed into sterile containers in an absolutely sterile environment. Bacteria simply have nowhere to come from.

79. Cold aseptic filling — the product is first cooled to room temperature (20–25°C) and only then bottled. No taste of "cooked fruit".

80. Dry aseptic filling — the container is sterilized with a gaseous fine mist of hydrogen peroxide or a beam of accelerated electrons. No water in the sterile zone.

Any container goes through 81. package sterilization — physical or chemical destruction of microflora on the material surface before contact with the product.

The material itself — 82. aseptic packaging — is a multilayer "sandwich" of food-grade cardboard, polyethylene and aluminum foil. It lets through neither light nor oxygen. It is thanks to it that a juice pack lives on the shelf without a refrigerator for more than a year.

The entire filling zone is a 83. clean room: an isolated box with cascades of HEPA filters, positive pressure of sterile air and a 84. laminar flow — unidirectional air movement without eddies, creating an invisible protective shield above the dosing heads.

For large-scale B2B transport there are two standards.

85. Aseptic metal drum — a steel drum with a capacity of 200–220 liters, with an inner multilayer sterile bag liner and a high-barrier aseptic valve. The main world standard of B2B packaging for concentrates.

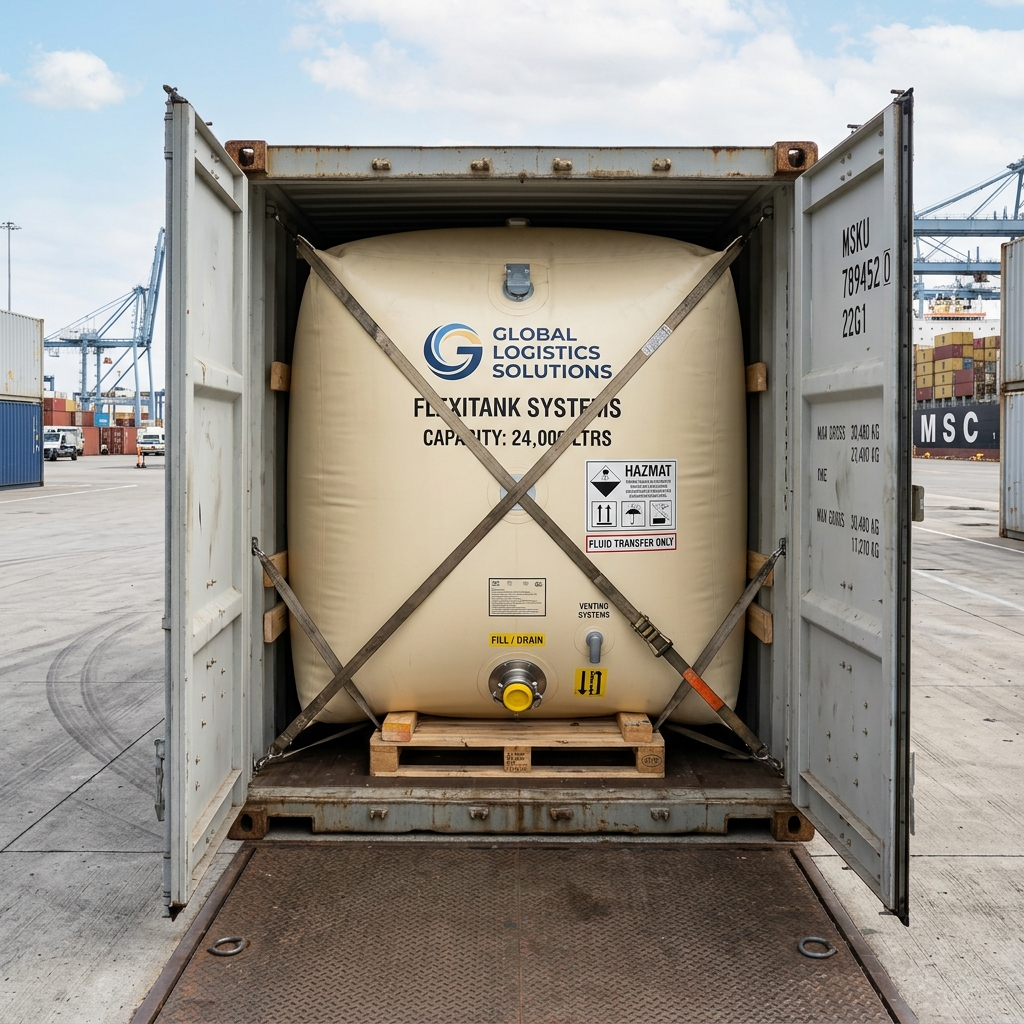

86. Flexitank (bulk liquid cargo) — a multilayer elastic polymer tank with a capacity of up to 24 000 liters, installed inside a standard 20-foot container and turning it into a liquid tanker. The contents of twenty thousand bottles cross the ocean in a single bubble — that is the economy of scale.

For delicate citrus concentrates — 87. freezing at temperatures below -18°C: complete stop of all enzymatic processes. Such cargo travels in the holds of refrigerated ships.

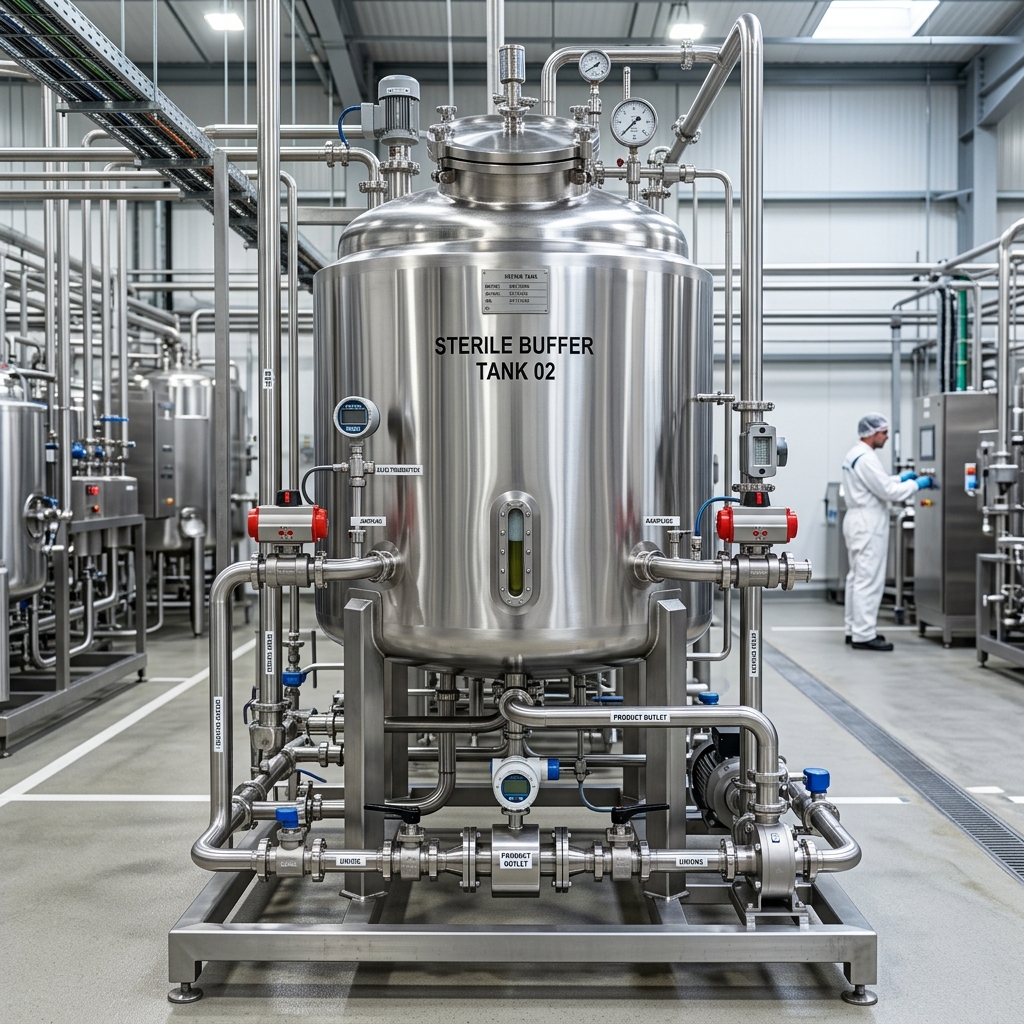

Between the pasteurizer and the filling line there is a 88. buffer tank — a thermally insulated intermediate reservoir. Short stops on the filling line do not interrupt the continuous pasteurization flow.

Chapter 11. International procurement, documents and trade

The finished concentrate in drums or flexitanks leaves the factory and becomes an object of international B2B commerce. This is a world of documents, Incoterms and negotiations.

The basis of any deal is a 89. specification: an official document that strictly fixes all physicochemical, microbiological and organoleptic parameters of the supplied raw material (Brix, acidity, color, turbidity). A deviation is a ground for a claim.

For every shipped batch the factory issues a 90. Certificate of Analysis — a quality passport with actual analysis results for all items of the specification.

The country of origin of the fruit is confirmed by a 91. Certificate of Origin — a certificate of the chamber of commerce and industry of the exporting country. It is required for customs clearance and tariff preferences.

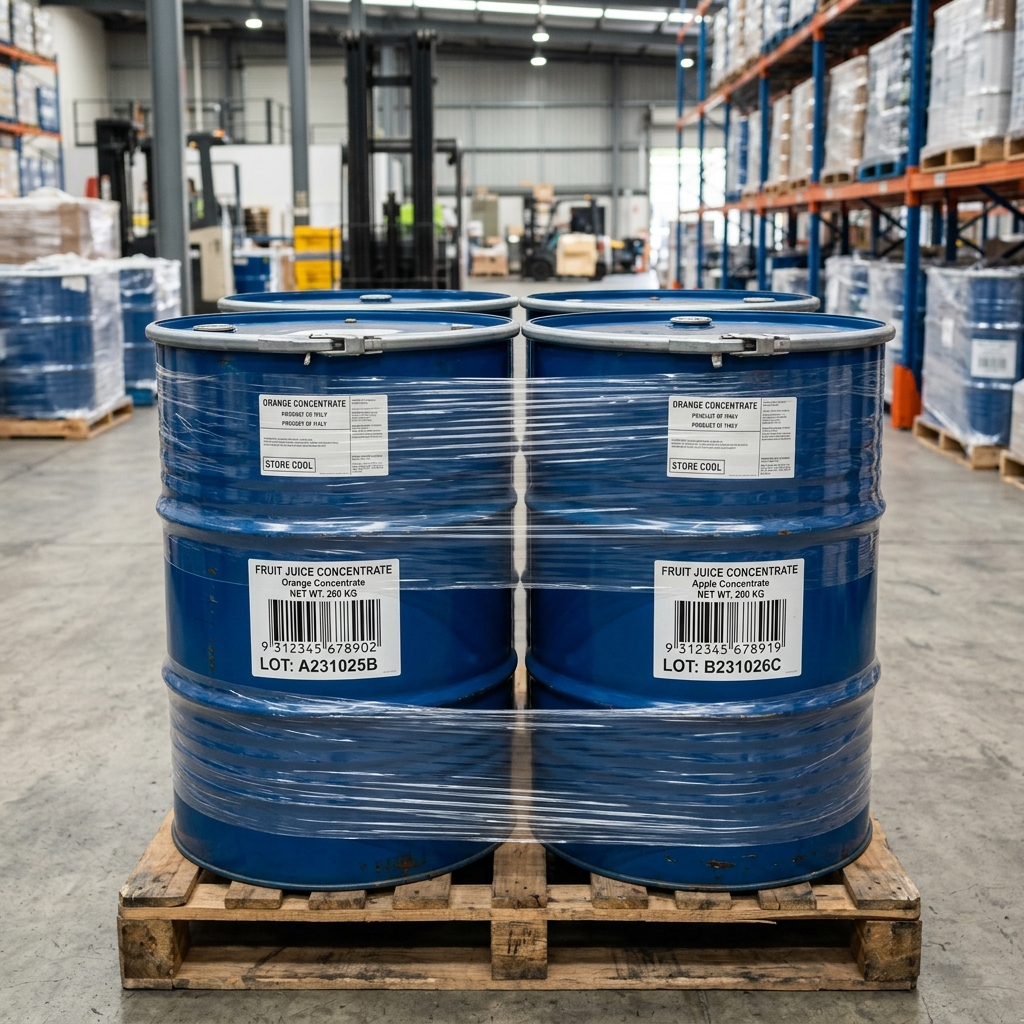

Each batch or daily production run receives a 92. Batch number — a unique code applied to each drum. The entire history of the product is reconstructed from it.

The factory laboratory keeps an 93. Arbitration sample — a control sample of each shipped batch, sealed for the entire shelf life. If the buyer files a claim, the sample will be opened and an independent examination conducted.

94. Shelf life — the time interval during which the raw material is guaranteed to retain safety and all specification parameters provided storage conditions are observed.

95. Order lead time — the total interval from the moment of placing the order and prepayment to the actual arrival of the raw material at the warehouse. It includes production, certification and transportation. 40–60 days are allotted for sea delivery from China.

96. MOQ — the minimum batch volume that a factory or importer is ready to ship within one deal. It can range from one drum to a full container.

97. Incoterms — international rules in the format of standardized three-letter codes, dividing rights, obligations and risks between the seller and the buyer.

98. FOB — the seller fulfills obligations at the moment of loading on board the vessel in the port of shipment. The buyer charters the vessel and bears the risks from that moment.

99. CIF (Cost, Insurance and Freight) — the seller's price includes the cost of the goods, international insurance and freight to the port of destination. Risks pass to the buyer upon loading on board.

100. EXW — ex-works: maximum obligations of the buyer. The seller simply makes the goods available at his warehouse, and the importer does everything else himself.

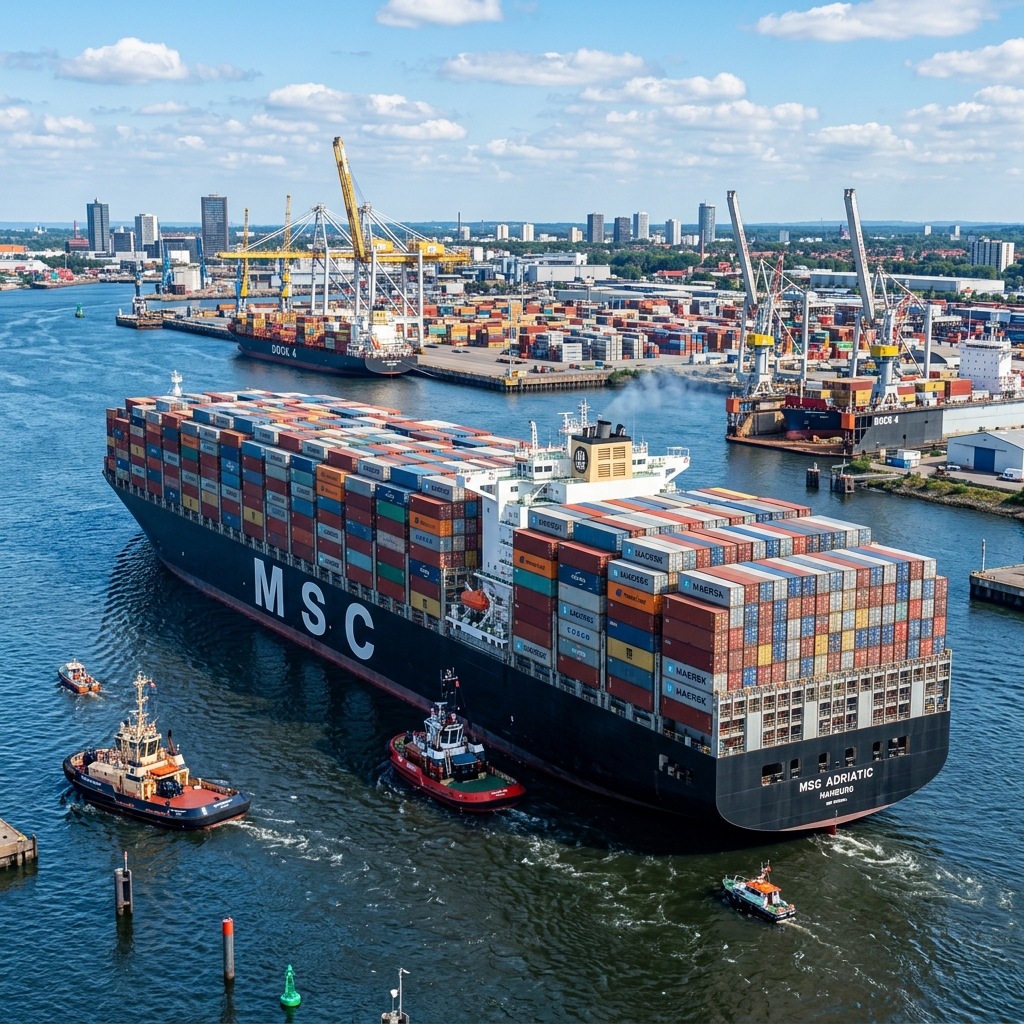

101. Freight — the charge for transporting cargo by sea container ships between ports. One of the key factors in the economics of concentrate procurement.

The main law of the EU market is 102. EU Regulation 023/2011: the technical regulation of the European single market for juice products made from fruits and vegetables. Without a declaration of conformity the batch will not enter the Europen market.

103. HACCP — an international food safety concept based on hazard analysis and critical control points (CCP). It does not check the finished product — it builds the process so that a hazard is excluded in advance.

104. Codex Alimentarius — a body of international FAO/WHO standards. A global reference that the legislation of the entire world is guided by.

105. AIJN — the European association of fruit juice producers. Their reference authenticity tables are the laboratory technician's bible: they are used to determine whether you have a real orange concentrate or a skillfully disguised blend.

Chapter 12. Warehouse logistics: life after customs

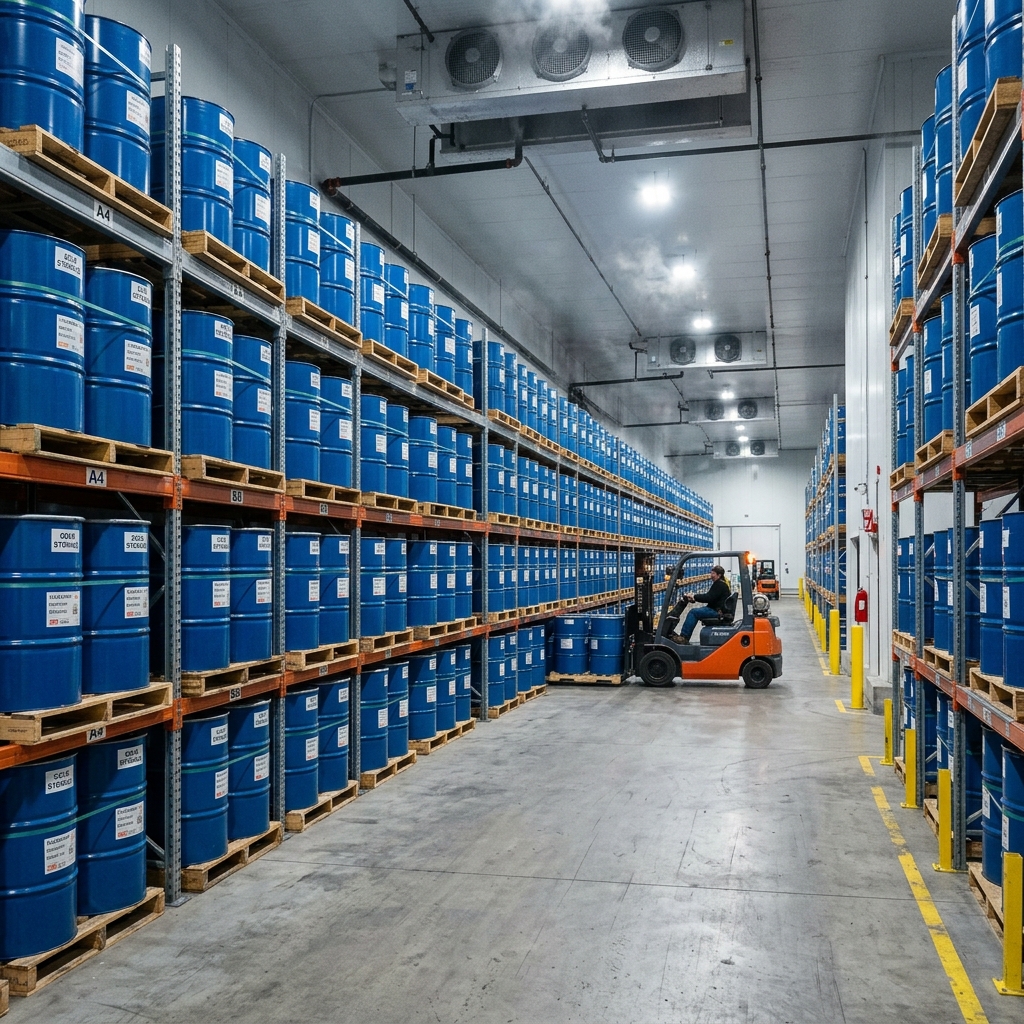

After customs clearance the raw material arrives at the importer's specialized warehouse.

106. Cold chain — a continuous temperature regime along the entire route of a temperature-sensitive cargo: from the factory through refrigerated containers to cold storage warehouses. A break in the chain even for a few hours leads to spoilage of the raw material.

107. Refrigerated container — a transport container with a built-in refrigeration unit that automatically maintains the set temperature during sea and land transportation.

108. Palletization — formation of transport units: drums are rigidly fixed on standard pallets with stretch film for mechanized loading.

Stock rotation in the warehouse follows two principles. 109. FIFO (First In, First Out) — the goods that arrived first are shipped first. The basic principle. 110. FEFO (First Expired, First Out) — stricter: the goods whose shelf life expires sooner are shipped first, regardless of the arrival date. The food industry prefers exactly this method.

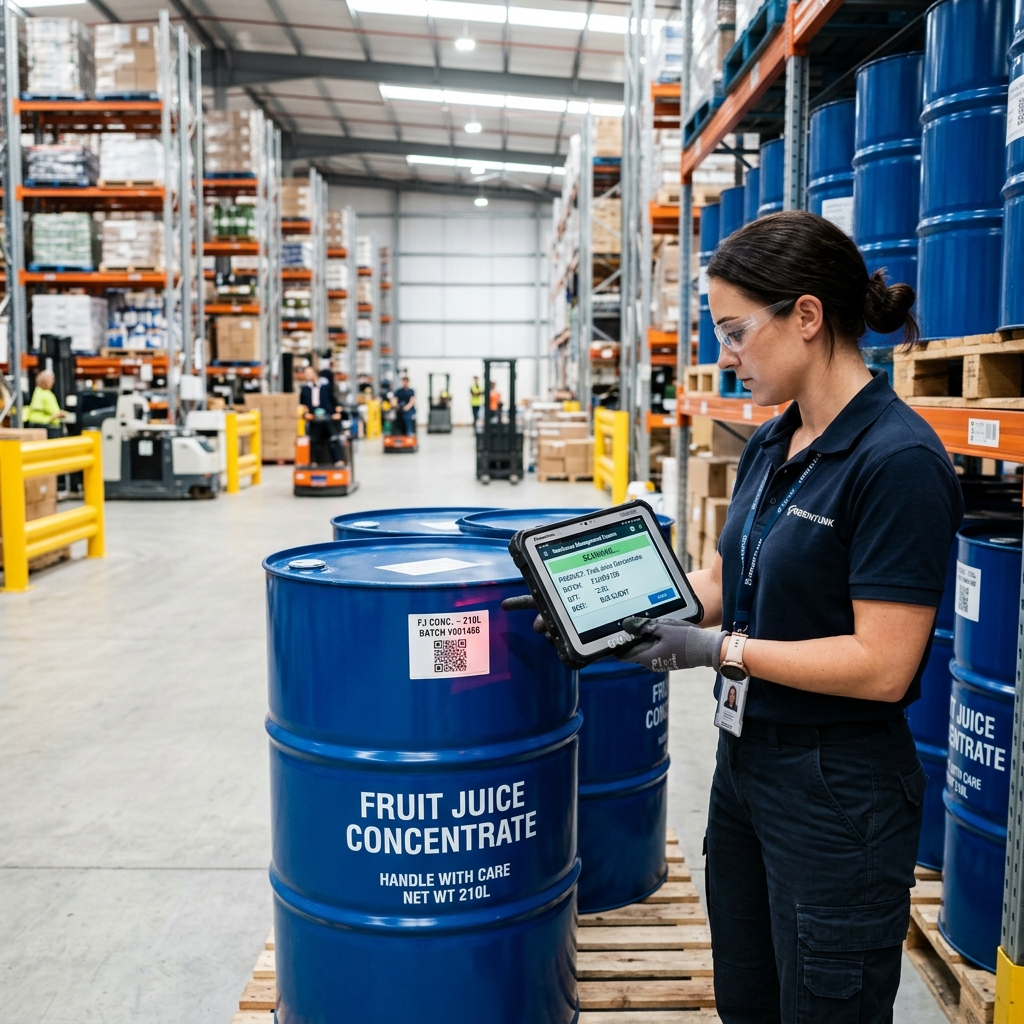

Newly arrived raw material goes into a 111. Quarantine area — a blocked-off part of the warehouse until test protocols are received from the laboratory. Shipping from quarantine is prohibited.

After successful control, a 112. Release for shipment appears in the accounting system — a status confirming the passing of laboratory control and permitting the physical assembly of the batch.

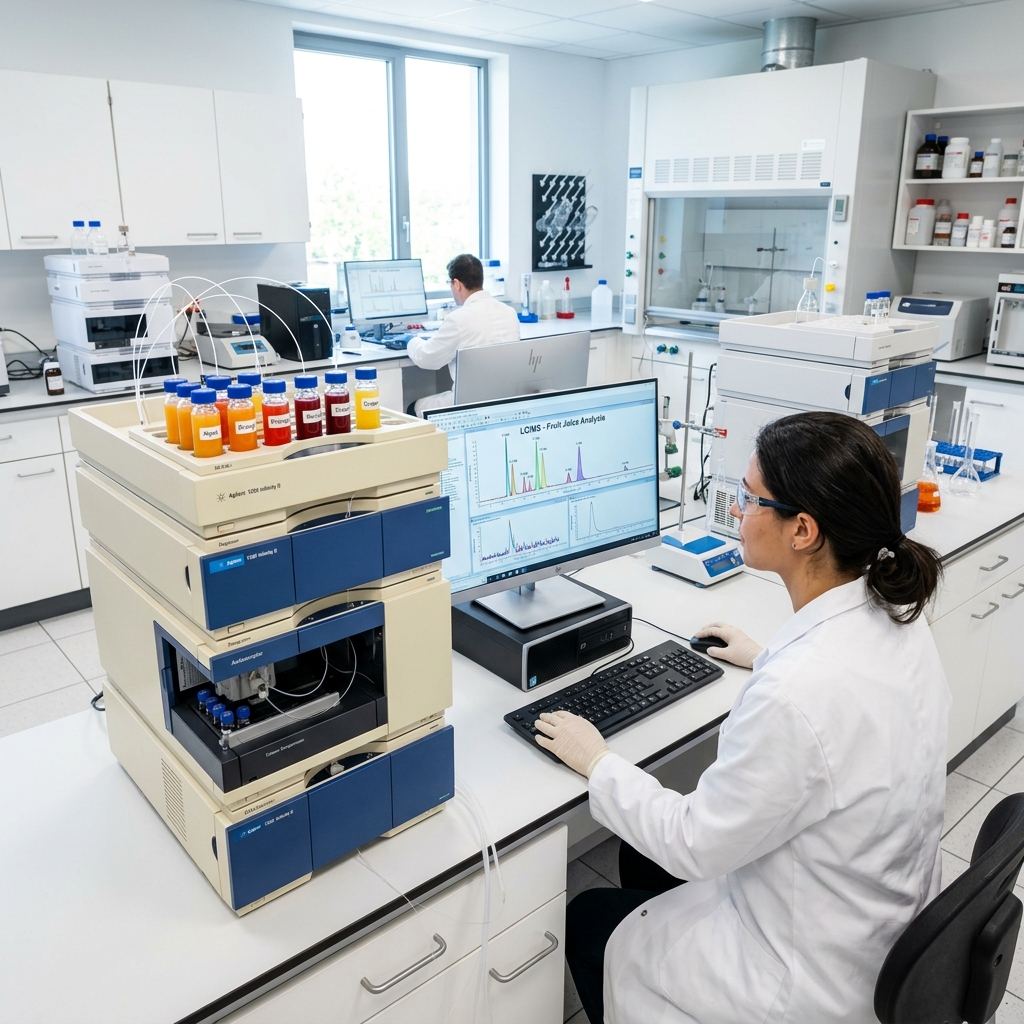

Chapter 13. Laboratory: a detective guarding the market

A modern laboratory is not just a place with test tubes. It is an expert center that protects the market from adulteration and dangerous toxins.

Safety analysis

113. Mycotoxins — toxic metabolites of mold fungi formed when the growing or storage conditions of fruits are violated. They have a pronounced toxic effect.

114. Patulin — a heat-stable mycotoxin formed when mold develops on apples and pears. Pasteurization does not destroy it. The EU limit is no more than 50 µg/l for regular products and no more than 10 µg/l for baby food. The only protection is strict selection of raw materials and final screening.

115. Residual pesticides — chemical preparations used in the orchard to protect the trees. Their traces in the concentrate are strictly controlled by chromatography. Exceeding the norms is an unconditional ground for rejecting the batch.

116. Heavy metals — lead, cadmium, arsenic, mercury — can accumulate in fruits under unfavorable ecology. They are controlled by atomic absorption spectrometry.

Adulteration detective

Big money circulates in the concentrate market — and that means there are always those who try to profit from fraud.

117. Adulteration — a deliberate change of the juice composition for profit: reducing the cost price by introducing foreign additives.

118. Authenticity verification — a set of in-depth laboratory studies confirming 100% naturalness of the juice.

119. Sugar-addition fraud — a cheap syrup is mixed into the concentrate: glucose-fructose, corn or invert sugar.

120. Adulteration by dilution — excessive dilution of the concentrate with water above the native standards.

121. Acidity correction — illegal introduction of synthetic acids (for example, cheap citric acid into pomegranate or cherry juice) to mask dilution.

How to catch an adulterated product? Every fruit has unique chemical "identity documents".

122. Marker compounds — specific substances unique to a particular type of fruit: phloridzin — only in apples, sorbitol — only in pome fruits.

123. Chromatographic "fingerprint" — a unique graphic profile of the distribution of chemical substances as they pass through a chromatograph. An irrefutable passport of authenticity.

124. Liquid chromatography (HPLC) — the reference method for separating complex liquid mixtures under high pressure. Used for precise analysis of organic acids and sugars.

125. Sugar profile — the precise quantitative ratio of fructose, glucose, sucrose and sorbitol. In apple juice, fructose must always be significantly more than glucose. A violation of the proportions is an alarm signal.

126. Organic acid profile — the quantitative proportion of malic, citric, isocitric and quinic acids. Foreign proportions instantly give away an adulterated product.

127. Gas chromatography (GC) — a method of analyzing volatile compounds in the gas phase. Used to control the authenticity of aromatic fractions (essences).

128. Isotope analysis (IRMS — stable isotope mass spectrometry) — the deepest method of authenticity testing. It measures the ratio of carbon isotopes (¹³C/¹²C) and oxygen isotopes (¹⁸O/¹⁶O). It allows one to distinguish the fruit's own sugar from added beet or corn syrup with 100% accuracy. Nature marks each atom with its own signature.

129. Spectrophotometry — an optical method based on measuring the absorption of electromagnetic radiation by juice components. Used for rapid identification of pigments.

130. Anthocyanin profile — a chromatographic and spectrophotometric map of the distribution of coloring pigments in dark berries and fruits. Helps to reveal the mixing of cheap grape concentrate into expensive pomegranate or blueberry.

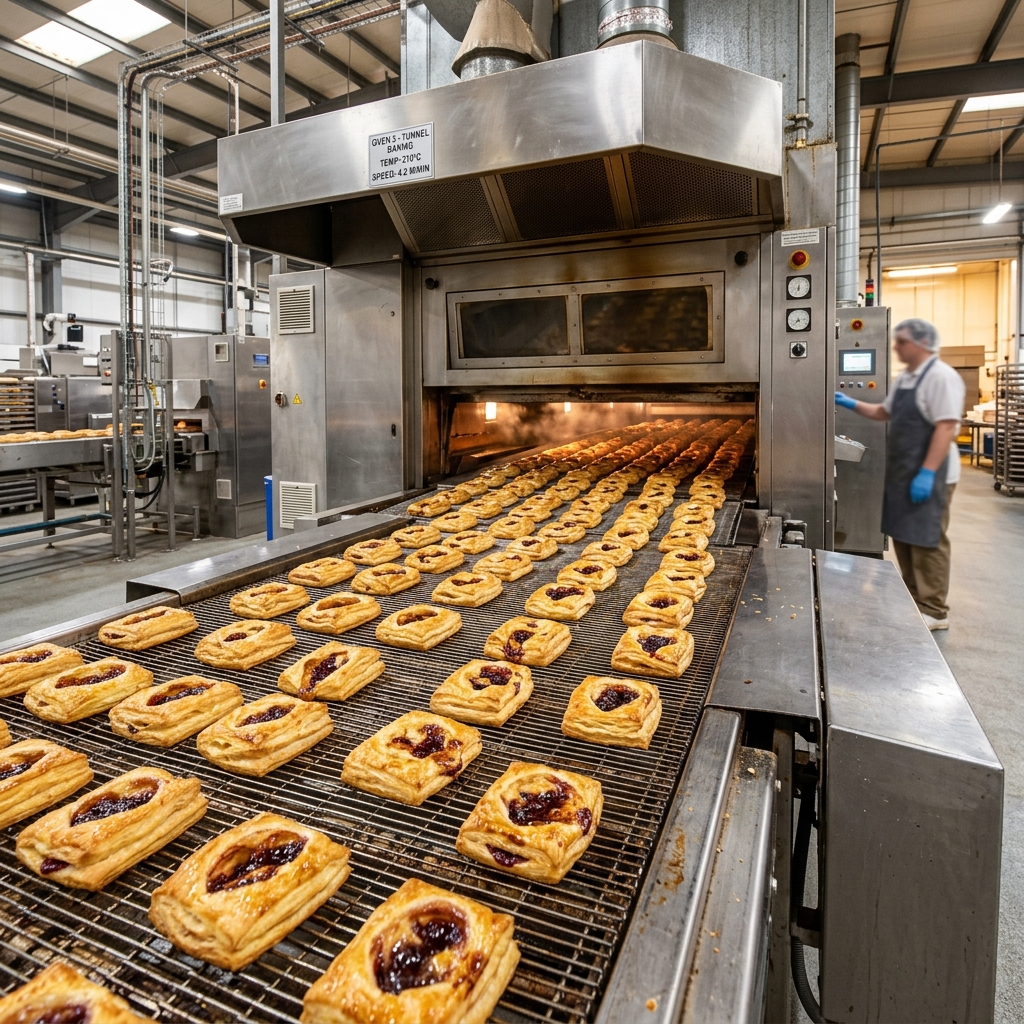

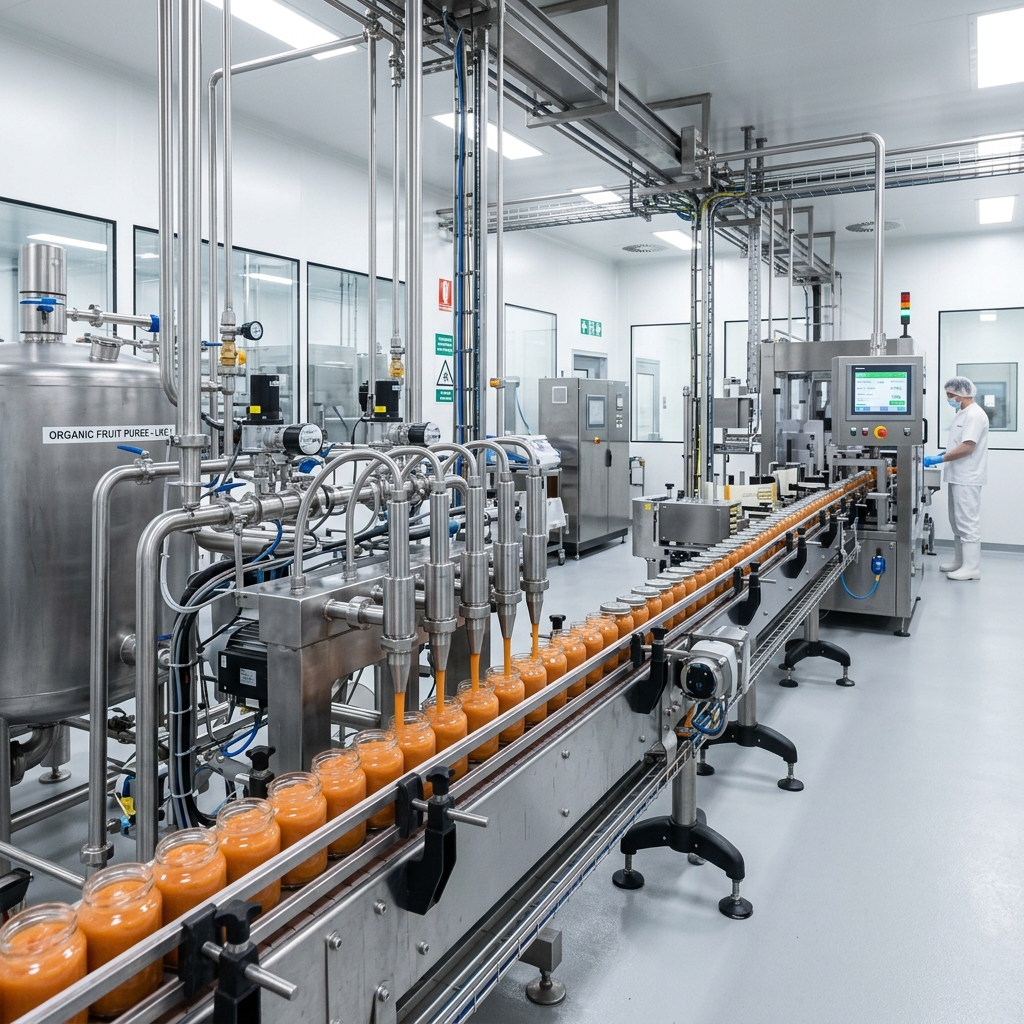

Chapter 14. Five finales: deep processing at food production facilities

The raw material has successfully passed the audit. Before it — five doors.

Finale A. Classic juice factory

Here everything starts with 131. reconstitution — a strictly calculated volume of purified water is added to the concentrate, recreating the fruit's original Brix.

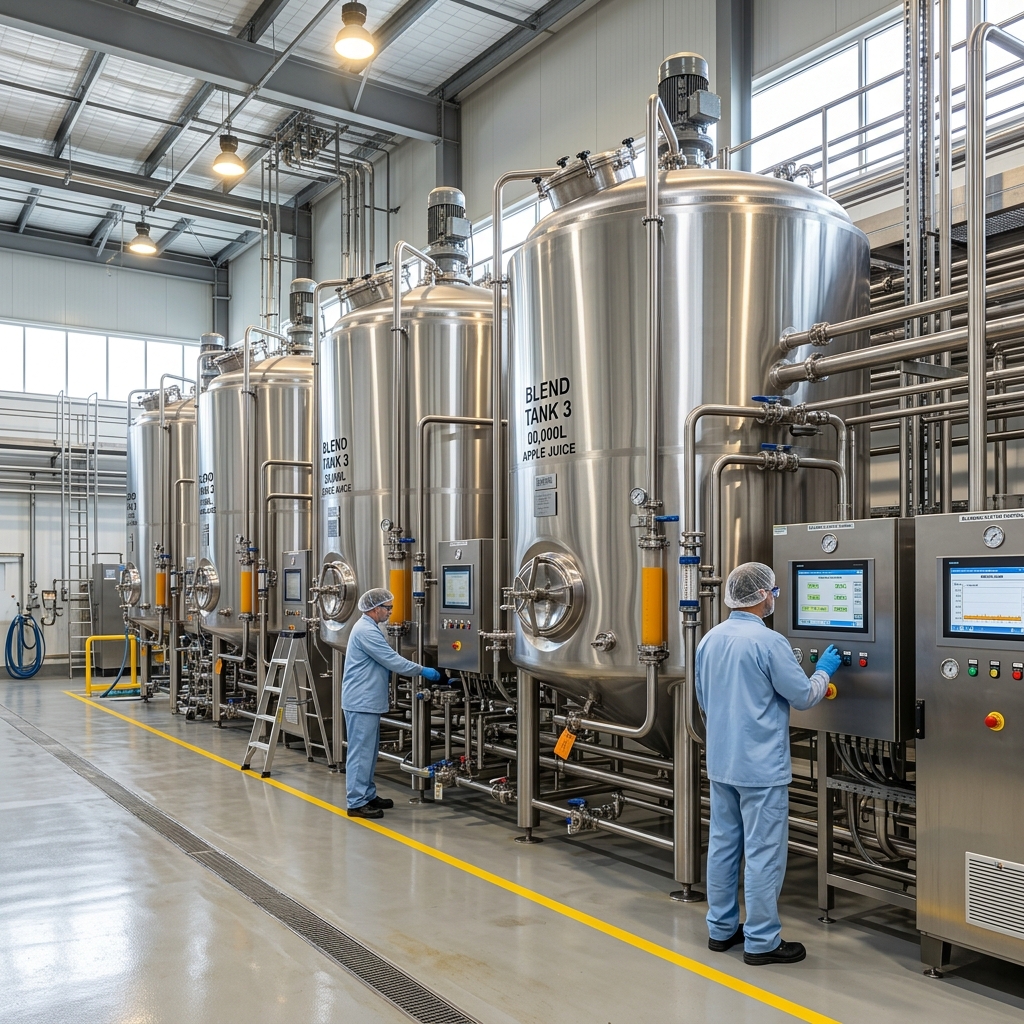

But Brix is not yet taste. Taste is created through 132. blending: mixing several types of juices or juice with puree in a special tank to obtain a harmonious taste and color. The multi-component "multifruit" nectar is the result of this work. This is an art: just as winemakers blend terroirs.

The water for juice reconstitution goes through 133. water treatment: mechanical filtration, softening, deep desalination by reverse osmosis and mandatory deaeration. Because well water is saturated with oxygen — and without deaeration it would destroy vitamin C in the concentrate within minutes.

Finale B. Dairy plant: yogurts, cottage cheeses, ice cream

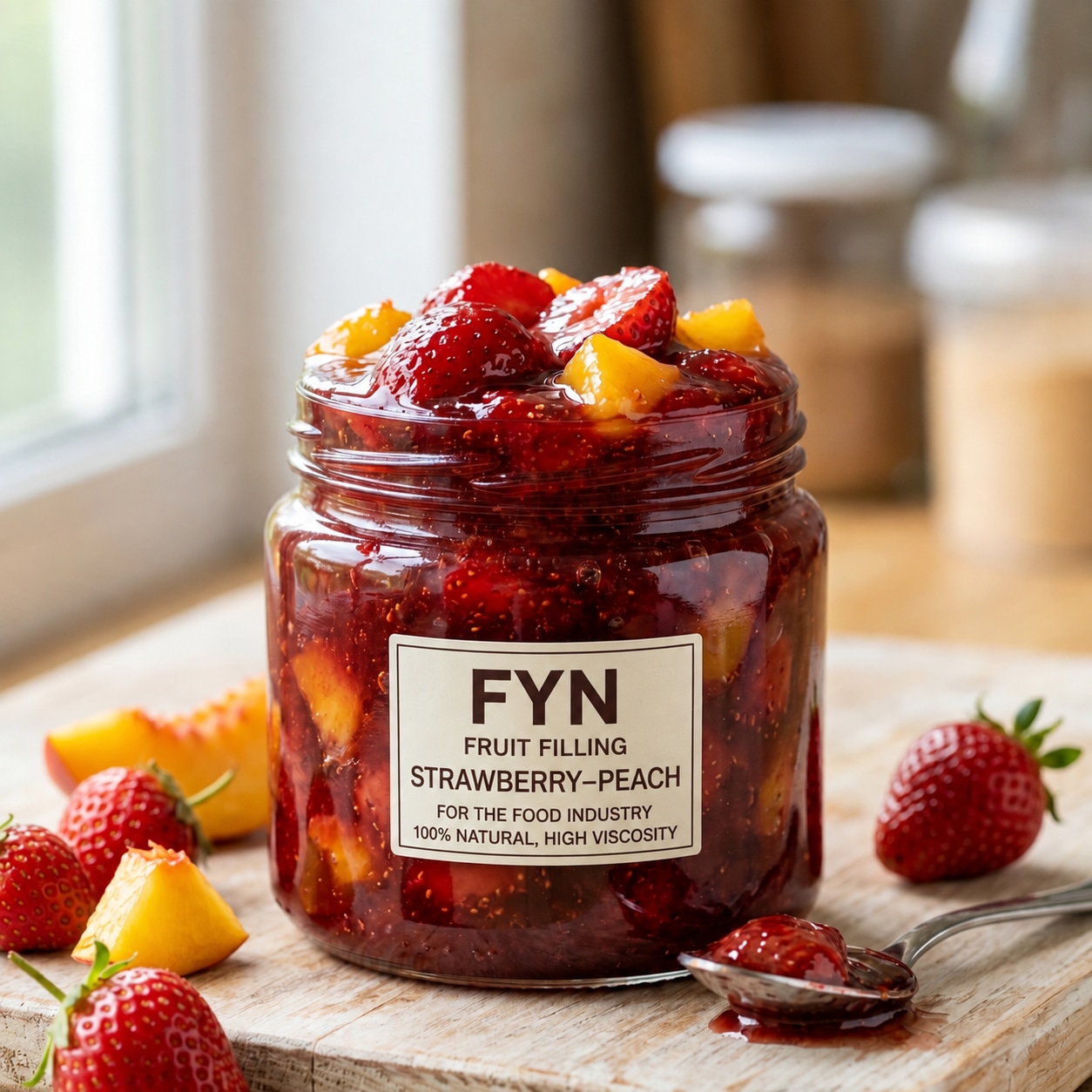

At a dairy plant, fruit puree or concentrate is boiled down with sugar, stabilizers and buffer salts. The result is 134. fruit-and-berry filling (FBF) — a structured semi-finished product dosed into the fermented-milk medium.

The main nightmare of a dairy technologist is 135. syneresis: spontaneous breakdown of the milk gel structure with separation of liquid whey onto the surface. You open a yogurt — and there is a puddle of liquid on top. The native pectin of the fruit filling binds free moisture, blocking syneresis.

The next challenge — 136. heat resistance of puree: the ability of fruit mass to retain its consistency, color and geometry of pieces under repeated heat exposure during pasteurization of the milk mixture.

And one more subtle point — 137. acid balance of the dairy medium: regulation of the pH of the fruit filling, preventing premature coagulation of fresh milk proteins before the starter culture is added.

Finale C. Brewery and craft drinks

Here the fruit concentrate meets the yeast.

138. Fermentable sugars — fructose and glucose from the concentrate — literally the food for brewing or wine yeast. They absorb them completely.

139. Fermentation — an anaerobic biochemical process of converting juice sugars by yeast into ethyl alcohol and CO₂. Add apple concentrate to the wort — you get cider. Raspberry — raspberry ale.

But the yeast cannot "eat" all substances. 140. Non-fermentable extractives — for example, sorbitol in pear concentrate — remain in the finished drink, forming the "body" of the cider: density and natural residual sweetness.

After fermentation, the drink is saturated with 141. carbonation — CO₂ is dissolved in saturators under pressure. The bubbles bring the cider or lemonade back to life.

Critically important is 142. colloidal stability of beer: the use of concentrates after deep ultrafiltration — ones stripped of their own proteins — prevents the formation of turbid protein-tannin complexes for the entire shelf life.

Finale D. Confectionery factory

143. Fruit filling — a confectionery semi-finished product based on juices and purees for filling candies, cookies, croissants and gingerbread.

144. Thermostable filling — a type with special high-methoxyl amidated pectins. When baked at 180–220°C, it does not boil, does not liquefy, does not leak out of the blank and is not absorbed into the dough. A technological miracle.

145. Water-holding capacity — the property of puree to retain water thanks to the hydrophilic groups of plant fibers, preventing the confectionery product from drying out.

146. Gelation — the process of liquid juice with sugar transitioning into a strong three-dimensional gel network. The basis of marmalade, pastille and marshmallow.

Finale E. Baby food block

147. Baby food — a special legislative category of products for children under 3 years old with stringent requirements for toxicology and purity. There is no room for compromise here.

148. Homogenized puree — a product of extra-fine grinding through finishing micro-sieves and high-pressure plunger homogenizers. Completely free of large particles for easy digestion by an infant.

149. Low-acid products — fruit and vegetable purees with pH > 4,6 (banana, pumpkin, zucchini). They require rigorous sterilization in autoclaves at temperatures above 120°C, since the natural acidity of the medium is insufficient to block botulism spores.

150. Sterility validation — a comprehensive procedure for confirming that the sterilization parameters of baby food are guaranteed to destroy all target microflora at every point of the autoclave.

Chapter 15. Traceability and consumer storage

151. Batch traceability — the digital gold standard of the modern industry. Using the lot number on the final juice bottle, the whole chain can be reconstructed backwards in a couple of minutes: you can find out the filling parameters, the number of the concentrate barrel, the vessel that delivered the cargo, the results of laboratory tests for patulin, the evaporation parameters at the plant, and even the date of harvest in a particular orchard.

A sealed juice package lives on the shelf at 152. room-temperature storage — up to +25°C — for more than a year. Asepsis has done its job.

But as soon as you open the package, the countdown begins. Bacteria and yeast get inside from the air — 153. secondary microbial contamination. That is why an opened package should be put in the refrigerator: 154. cooling (refrigeration) at +2–4°C puts the microflora that got inside into suspended animation and extends the safety of the product.

Even in a sealed package, slow processes continue — 155. enzymatic aging: oxidation of the components by residual oxygen that seeped through the seam. Vitamins decline, the aroma weakens. "Use by" is not a formality.

Chapter 16. In the stomach: the finale of the great journey

You took a sip. A journey of thousands of kilometers and hundreds of days ends in a few seconds.

Because juice is liquid, the 156. bioavailability of its vitamins and minerals is instant. No thick cell walls that need to be digested. Potassium, magnesium, vitamin C — straight into the blood.

157. Carbohydrate profile of fruits — a naturally balanced ratio of glucose and fructose — gives the body a fast and clean charge of energy. The flip side of the coin: 158. glycemic index (GI) of clear juice is higher than that of a whole fruit, because the fiber that slows down the absorption of sugar remained at the plant in the press residue.

159. Polyphenol profile — a set of natural biologically active compounds (flavonoids, phenolic acids), unique to each type of fruit. They are absorbed into the blood and work as antioxidants, protecting cells from oxidative stress. And also — a unique "passport" of every type of juice in the laboratory.

160. Osmotic pressure in the gastrointestinal tract — the physicochemical balance of the juice concentration. A properly reconstituted natural juice is isotonic to the internal environment of the body, does not cause osmotic shock in the intestines and perfectly quenches thirst. Exactly as it should.

*When you next open a juice package — know: this liquid crossed the ocean in concentrated form, visited two plants, survived vacuum, fire and cold, passed laboratory control in several countries — and only then reached your glass. Now you know every step of this journey.*

Term navigator

Main abbreviations of the industry

FAQ: answers to critical questions from buyers and technologists

Alphabetical index of terms
